Common Toyota 3UR-FE V8 Engine Problems Explained

The UR engine range replaced the legendary UZ series in 2006. The UR was offered in capacities ranging from 4.6- to 5.7-liters and introduced a raft of technical updates. It also ditched the timing belt for a more rugged chain.

These engines were fitted to models like the Toyota Sequoia, Tundra and certain Land Cruisers. They are known for their reliability and strong power delivery, but there are a few common problems that tend to crop up at higher mileages.

The Car Care Nut rectifies these issues on a 2016 Toyota Tundra, and explains how these problems come about, as well as what can be done to resolve them.

Most Common Issues With The 3UR-FE

Due to its size, the 3UR motor can be intimidating to work on. It takes up most of the engine bay, but aside from a few tricky areas, it is DIY-friendly.

"It’s a simple engine to work on if you are somewhat experienced."

  - The Car Care Nut

The Car Care Nut suggests marking the disconnected wires and hoses. He also mentions that marking the VVT solenoids will prevent them from being reinstalled incorrectly, preventing timing issues. Common issues include:

  • Ticking Sound From Timing Chain – Tensioner can malfunction, causing the chain to be noisy when the engine is cold
  • Cam Tower Leaks – The seals are known to develop leaks over time
  • Heat Exchanger Leak – The coolant can leak into the V of the engine, causing corrosion and damage

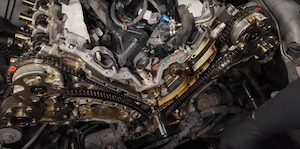

Timing Chain Tensioner

The 3UR-FE ditched the timing belt of the earlier UZ series and replaced it with two timing chains. This removed the need to replace the belt at various service intervals, but the chains themselves can cause some issues.

The tensioner on the driver-side chain can get stuck when the engine is cold. This causes the chain to remain slack, which will cause a metallic noise at idle. Fortunately, it rarely results in chain failure. Regular oil changes can help, but the problem may still occur.

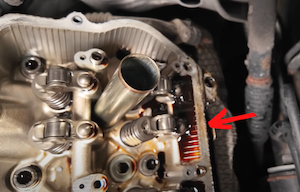

Cam Towers

Cam towers, also called cam carriers, are sometimes known to leak on these particular toyota engines. These covers only hold the cams with the cylinder head beneath them.

The sealer between the cam and the cylinder head can develop leaks. This is often misdiagnosed as a gasket leak.

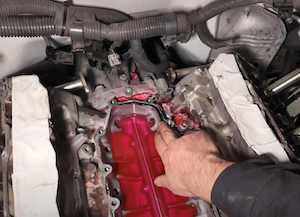

Heat Exchanger

The heat exchanger is located in the "V" of the 3UR-FE V8 engine block. The valley plate that fits over this section is an area you'll want to keep an eye on - it a common problem area for leaks.

Age and use takes a toll, and the sealer tends to fail over time, causing the pressurized coolant to leak.

Less Common Issues

  • Valve Springs
  • Front Timing Covers
  • Drive Belt Tensioner
  • Water Pumps

Early versions of the 3UR-FE could break valve springs, leading to severe engine damage. If the vehicle is in for other engine work, this is an important one to check. The lifters should also be examined for excessive looseness while accessible.

"If you have an ’07 or ’08, check the valve springs."

  - The Car Care Nut

The front timing covers tend to develop leaks, usually on the driver’s side. A replacement gasket will cure the issue. The drive belt tensioners can sometimes fail at higher mileages, and the water pumps are also prone to leaks.

A Comprehensive Repair

The owner of this 2016 Tundra wanted every known and potential issue taken care of so they had the following items replaced:

According to the Car Care Nut, the complete job including all OEM parts and labor cost this client $5,296. That is a considerable amount, but it did cover a lot of repair work.
