Engine Rattle? Check Your Timing Chain Guide

The Car Care Nut has encyclopedic knowledge about most Toyota models, but he really knows the 2012 Toyota Camry inside out because he used to own one. So when one arrived at his shop with a nasty engine noise, he was quick to diagnose the horrible screeching sound as an upper timing chain guide issue.

This Camry model is fitted with the familiar 2AR-FE engine, and a loud screeching sound like this on this trusty model should not be ignored.

Identifying Timing Chain Noise On The 2AR-FE

The Car Care Nut first ruled out the obvious. He removed the drive belt and ran the engine briefly. The engine rattle and screech were still there. That meant the noise wasn’t coming from the belt, tensioner, or accessories; it was coming from inside the timing cover, which houses the timing chain.

The 2AR-FE will sometimes use oil between services, so long oil change intervals may leave it running low on oil. This can cause:

• VVT-i gear rattle on startup
• Excessive chain movement
• Extra stress on the timing chain guide

Left alone, that rattle can turn into a real problem.

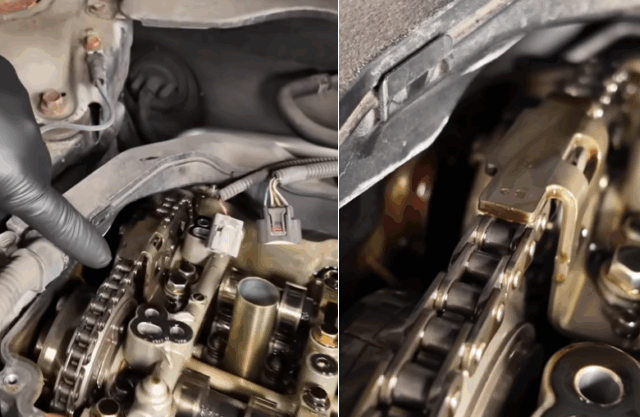

With the valve cover off, the problem was obvious: the upper timing chain guide was broken. He found that the plastic guide tab had snapped off, and a big chunk of the guide had fallen toward the oil pan. The chain was now riding against a metal surface, causing the metal-on-metal contact and the horrendous screeching. In this scenario, that $10 plastic guide may decide whether your timing chain lives or dies!

Why VVT-i Rattle Destroys The Guide

Image Credit: TheCarCareNut

The exhaust VVT-i gear on the 2AR-FE uses a heavy spring. The intake VVT-i gear uses a lock pin to hold position on shutdown. If that lock pin sticks:

• The gear doesn’t lock on startup
• It rattles for a few seconds until oil pressure builds
• That shaking gear hammers the upper timing chain guide

Over time, the guide cracks, then the chain starts hitting metal, wearing both the guide and itself. This is why the timing chain rattle on these engines should never be ignored.

Always Use OEM Toyota Parts

 Image Credit: The CarCareNut

Any time the valve cover comes off on a 2AR-FE (or other AR-series engines), the CarCareNut recommends replacing the upper timing chain guide proactively. He also reiterates that you should only ever use OEM Toyota timing chain components. The part is cheap, but the failure is not. At the same time, he also replaces the:

• Valve cover gasket
• Small oil feed gaskets for the VVT-i gears and cam oil spray
• Spark plug tube seals around the ignition coils

Aftermarket gaskets can leak oil, bleed off oil pressure to the VVT-i system and eventually starve cams and gears of proper lubrication. OEM Toyota gaskets aren’t just 'better.' They’re insurance against a potentially very expensive engine repair.

Don’t Ignore The Rattle

Thanks to TheCarCareNut's expert diagnosis, this Camry got lucky. The guide broke, but the 2AR-FE timing chain hadn’t worn deeply yet. The owner now has time to plan a future VVT-i gear and chain service instead of an expensive engine repair. If you hear:

• Engine rattle on cold start
• Screeching from the timing cover area

Check it out.
