Cars have gotten more advanced and sophisticated over the years, offering more power and better fuel economy with lower emissions. The key to these performance gains is engine optimization using an Engine Control Module (ECM).
The ECM serves as the brain for a vehicle's engine but occasionally needs to be replaced. That's why we put together this guide on engine control modules which will help answer the following questions:
- What is an ECM, and what does it do?
- How do you diagnose a bad ECM?
- OEM vs. aftermarket ECMs - which is better?
- How do you replace an ECM?
What Is An Engine Control Module, And What Does It Do?
The Engine Control Module, or ECM, is an electronic device that controls various functions of an internal combustion engine. It is the brain of modern engine, and manages tasks related to the following areas:
- Engine Performance Optimization
- Fuel Efficiency
- Emissions Control:
- Diagnostic Info:
Check out this article for more in-depth information on the ECM and its functions.
Common ECU Problems, And How To Diagnose Them
When the ECM starts to go bad, it will malfunction and display some common symptoms (find more details here), including:
- Illuminated Check Engine Light (CEL) and trouble codes indicating ECM-related issues
- Poor engine performance and poor fuel economy
- Transmission problems, including erratic or hard-shifting
- Miscellaneous electrical issues or glitches, such as malfunctioning gauges, intermittent stalling, or non-responsive accessories
If you suspect a problem with your ECM (learn about common problems here), there are three things you can do to diagnose the problem:
- Check the diagnostic trouble codes with an OBD-II scanner. Using an OBD-II scanner will help retrieve trouble codes for analysis. Problems related to the ECU could include faulty sensors, wiring problems, or internal ECU malfunctions.
- Inspect wiring and connections to the ECU to ensure they are secure and free from corrosion or damage. Faulty wiring or loose connections can lead to ECU malfunction.
- Perform an ECM reset by disconnecting the battery for about 15 minutes.
OEM Vs. Aftermarket Engine Control Modules

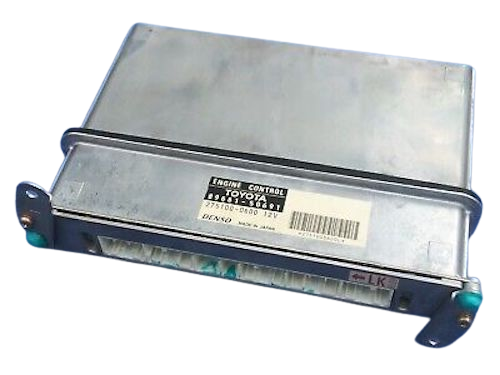

Image Credit: YiannisPagonis
If your ECM is going bad, you may wonder if you can save money with an aftermarket unit. That may seem like a good option if the aftermarket ECM is cheaper or offers the potential for customization. But sticking with a Toyota OEM engine control module is the better choice for the reasons explained here. Primarily because:
OEM engine control modules exactly match the original ECM, ensuring compatibility with the vehicle's wiring harness, sensors, and other critical systems. This compatibility eliminates potential installation challenges and reduces the risk of electrical problems or malfunctioning caused by mismatches.
Choosing an OEM engine control module means benefiting from Toyota's product support, including technical assistance, troubleshooting guidance, and customer support.
All Toyota OEM parts, including engine control modules, are backed by Toyota's manufacturer warranty of 12 months with unlimited miles.
How To Replace A Bad Engine Control Module
The following steps apply to most Toyota cars or trucks. To replace the ECM, you'll need screwdrivers and a socket wrench set. Additionally, you'll want a multi-meter for electrical testing and a trusted tutorial (like this one). The basic steps are:
- Disconnect the battery to prevent an electric discharge or damage to the vehicle's electrical system.
- Locate the ECM, which is usually against the firewall in the engine compartment.
- Remove the old ECM by disconnecting the wiring harnesses and removing any screws or bolts securing it.
- Install the new ECM, carefully placing it in the housing and aligning it correctly with the mounting holes.
- Test the new ECM by reconnecting the battery and turning the ignition key to the "ON" position without starting the engine. Check for any warning lights or error codes.
Olathe Toyota Parts Center Can Help If You Have A Bad ECM
If you have a bad or failing ECM, we can help troubleshoot the problems by providing free diagnostic info for common Toyota trouble codes. We also carry the OEM Toyota ECMs, including ones for these popular models:
- 2005 - 2007 Toyota Corolla/Matrix
- 2004 - 2005 Toyota Camry
- 2010 Toyota 4Runner
- 2019 - 2020 Toyota Tundra
- 2011 Toyota Tacoma
Since 2007, the Toyota Parts Center has offered top-class online sales and services. We offer OEM Toyota parts at wholesale prices, backed by Toyota’s 12-month unlimited mileage warranty. Additionally, we offer other resources like a free Toyota VIN decoder and grille swap or engine swap guides. Contact us if you need help diagnosing or replacing your Toyota's ECM or have questions about your vehicle.
