How To Diagnose A Failing Modulator Valve

If the modulator valve attached to your automatic transmission fails, your transmission won't shift well. If you let the problem go on long enough, it can cause other serious problems with your car. That’s why it’s important to officially confirm that your modulator valve is broken and replace it right away as soon as you experience symptoms.

Symptoms of a Broken Modulator Valve

A modulator valve is in charge of transmission shifts. When it’s not working properly, your transmission’s shifting suffers. Worse, if you leave the worn out valve in place, your engine can actually start burning transmission fluid. This is because the modulator valve is operated by a engine vacuum. The valve is connected to the intake manifold via a vacuum line. If the valve starts to leak, the engine sucks transmission fluid through the vacuum line into the intake manifold. Then the engine burns the transmission fluid.

Mod valve location

Image Credit: Nervous

If this goes on long enough, the transmission won't have enough fluid for proper lubrication. If it becomes damaged, you will either have to replace or repair it. Either option is very expensive.

When you have a bad modulator valve, some or all of the following symptoms will begin to manifest themselves:

  • A whistling sound (from a leaking diaphragm)
  • White smoke coming out of the exhaust (from a leaking diaphragm)
  • Early or late shifting
  • Hard shifts (usually causing the car to jerk)
  • A rough idle
  • Low transmission fluid levels

Diagnosing a Broken Modulator Valve

The symptoms can tell you a lot about what’s going on with your transmission. But you can’t know for sure that the modulator valve is the culprit unless you diagnose the issue. To do this, you need to observe the symptoms closely. The two processes delineated below will help you diagnose the problem.

Testing Process 1

First, you want to determine whether the diaphragm is leaking, which is the most common cause of modulator valve failure. To do this:

  1. Bring your car outside and shift the transmission into park with the parking brake on.
  2. Warm up the engine until it reaches a normal temperature.
  3. Watch the exhaust and see if there’s any smoke coming out of it.
  4. If there’s white smoke, then the diaphragm is leaking and drawing up the transmission fluid into the engine.

Even if you don’t see any smoke, it’s still a good idea to check your transmission fluid levels. Open the hood and check the fluid levels. A significant loss of fluid is a clear indicator that the diaphragm is ruptured.

Testing Process 2

Even if there’s no white smoke and if the transmission fluid levels look good, it doesn’t mean that the modulator valve is working correctly. There could be another issue, such as a leaking vacuum line. If the vacuum line leading to the modulator valve leaks, the valve won't function as it should. There are a couple of ways to check for a vacuum line leak:

  • Listen for the Whistle
    • A leaking vacuum line often makes a whistling sound when the engine is idling. Listen in the area of the vacuum line and see if you can hear it. If you think you hear a whistle, but are not sure, move on to the vacuum tester method.
  • Vacuum Tester Method
    • Remove the end of the vacuum line that attaches to the intake manifold.
    • Measure the vacuum at the intake manifold while the engine is idling.
    • Reconnect the vacuum line.
    • Measure the vacuum at the other end of the vacuum line while the engine is idling.
    • The two measurements should be the same. If the measurement at the end of the line is less than the measurement at the manifold, the line is leaking.

Replacing the Modulator Valve

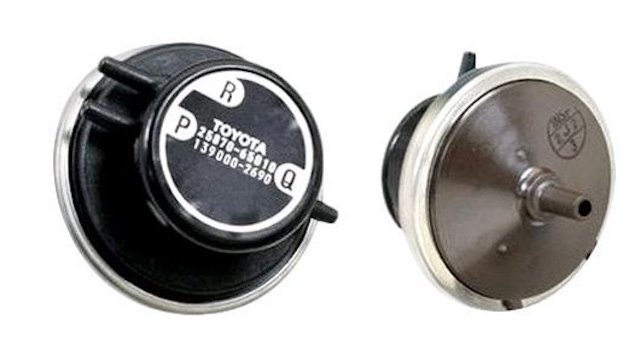

Replacement modulator valve

Don't pay a shop hundreds of dollars to replace your modulator valve. You can do it at home as long as you have a reliable car lift and 30 minutes to spare. You can buy a genuine OEM Toyota modulator valve from us at wholesale pricing. All you have to do is to look up your Toyota here to find the right modulator valve for your car.

Please contact us if you have any questions about diagnosing a bad modulator valve and/or replacing it. We’ll be happy to answer them!

Written by Jason Lancaster
